COLUMN-TYPE PALLETIZING ROBOT
Column-Type Palletizing Robot
Designed for automatic palletizing of bagged products with stable operation, compact structure and customizable gripping solutions.
- Total payload
- Up to 120 kg, including gripper
- Working reach
- Approx. 2,200 mm
- Maximum pallet height
- Up to 1,600 mm
- Palletizing speed
- Up to 400 bags/h
- Rated power
- Approx. 7 kW
PRODUCT INFORMATION
Product Overview
The Column-Type Palletizing Robot is designed for automatic palletizing of bagged products in a compact and efficient way. The system adopts a vertical lifting column and rotary arm structure, allowing it to pick bags from the infeed position and place them onto pallets according to the preset stacking pattern. It is suitable for applications where stable palletizing performance, compact footprint and flexible layout are required. The robot can be equipped with a customized bag gripper according to the bag dimensions, bag material and product characteristics. Material-contact parts can also be manufactured in stainless steel when required. This system is suitable for bagged powder and granular materials in industries such as feed, fertilizer, chemicals, food ingredients, building materials and other bulk-material packaging lines.
PRODUCT INFORMATION
Suitable Materials and Applications
- Feed bag palletizing
- Fertilizer bag palletizing
- Chemical powder bag palletizing
- Flour bag palletizing
- Starch bag palletizing
- Plastic granule bag palletizing
- Building-material bag palletizing
- Food ingredient bag palletizing
- Mineral powder bag palletizing
- Other bagged bulk materials
PRODUCT INFORMATION
Working Principle
Filled bags are transferred to the robot picking position by the infeed conveyor. The column-type palletizing robot moves vertically and rotates its arm toward the bag. The customized gripper picks up the bag and transfers it to the palletizing position. According to the preset pallet pattern, the robot places the bag onto the pallet layer by layer. The robot repeats the cycle until the pallet is completed. After one pallet is finished, the system can continue palletizing on the next pallet position or work together with pallet conveyors and other automatic conveying equipment if required.
PRODUCT INFORMATION
Key Features
- Automatic palletizing for bagged products
- Compact column-type lifting and rotary-arm structure
- Stable palletizing speed up to 400 bags per hour
- Customizable gripper for different bag specifications
- Suitable for powder and granule bag palletizing
- Optional stainless-steel material-contact parts
- Flexible layout for compact production areas
- Customized pallet pattern programming available
PRODUCT INFORMATION
Optional Configurations
- Customized bag gripper
- Stainless-steel material-contact parts
- Dual pallet positions
- Infeed conveyor
- Outfeed conveyor
- Automatic pallet dispenser
- Safety fencing and interlocks
- Electrical configuration matched to the destination country
- Customized pallet pattern programming
- Gripper design according to bag type and material
CONFIGURE THE APPLICATION
Need help matching the machine to your material and output?
PRODUCT INFORMATION

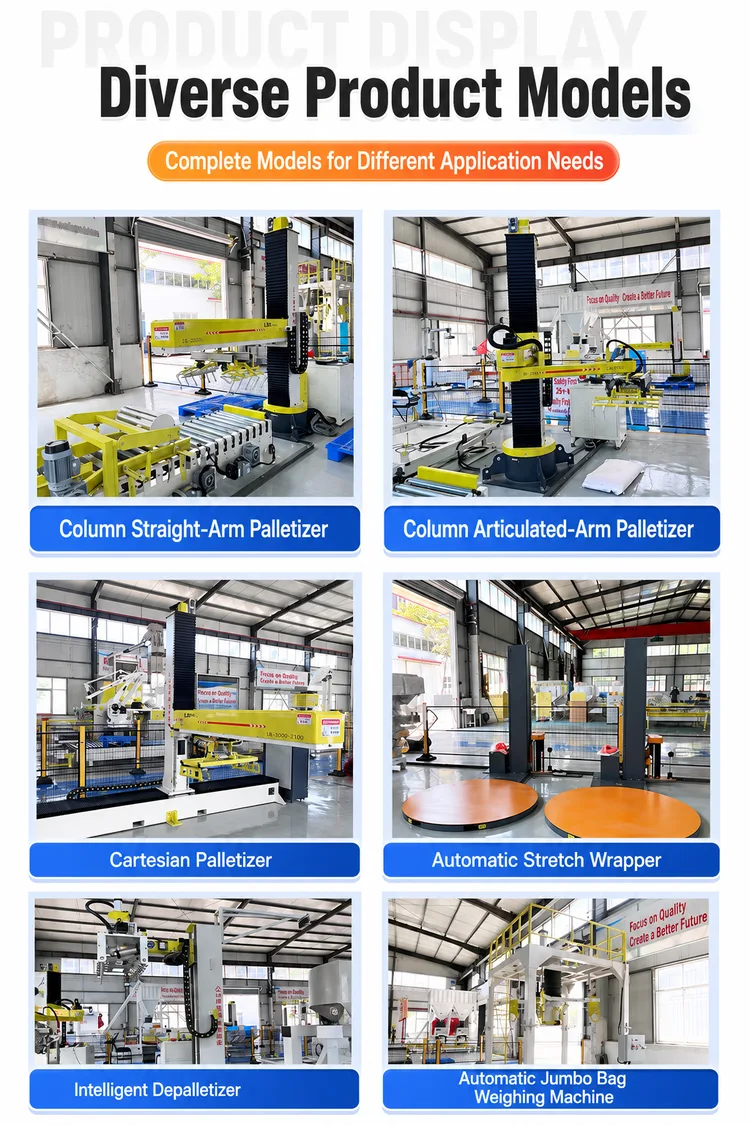

Product Details and Images
PRODUCT INFORMATION
FAQ
What does this column-type palletizing robot do?
It automatically picks filled bags and stacks them onto pallets according to the preset palletizing pattern.
What products can it handle?
It is suitable for bagged powders, granular materials and other bagged bulk products.
What is the maximum payload?
The total payload is up to approximately 120 kg, including the gripper. The suitable bag weight depends on the actual gripper configuration.
What is the working reach?
The reference working reach is approximately 2,200 mm.
What is the maximum pallet height?
The standard configuration is suitable for pallet heights up to approximately 1,600 mm.
What is the palletizing speed?
The palletizing speed can reach up to approximately 400 bags per hour, depending on the bag size, layout and pallet pattern.
Can the gripper be customized?
Yes. The gripper can be customized according to the bag size, bag material and product characteristics.
Can material-contact parts be made of stainless steel?
Yes. Material-contact parts can be manufactured in stainless steel when required.
Can the robot be integrated into a complete line?
Yes. It can be integrated with bagging machines, conveyors, pallet dispensers and pallet wrapping systems.
What information is required for a quotation?
Please provide the bag type, bag size and weight, required palletizing speed, pallet size and destination country.
