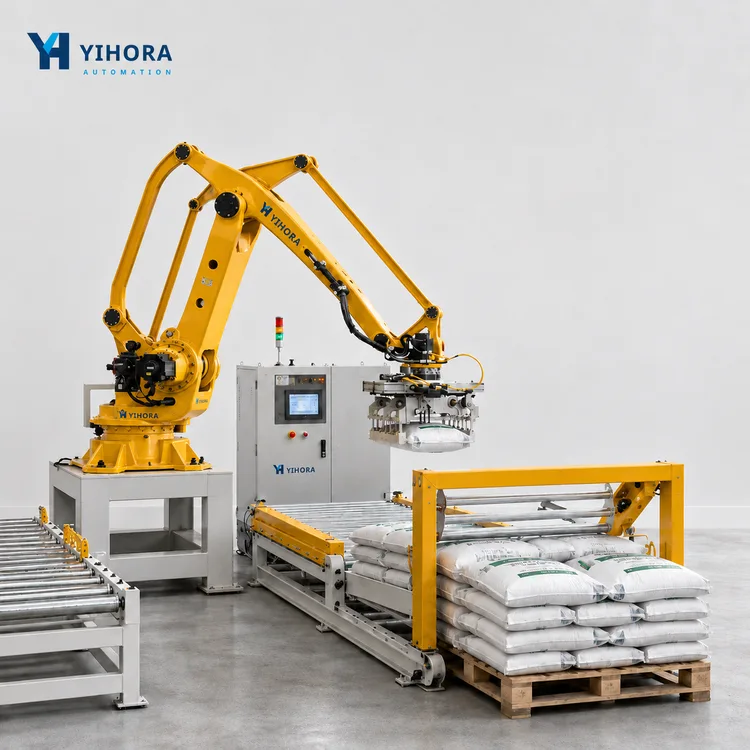

4-AXIS ROBOTIC PALLETIZER
4-Axis Robotic Palletizer
4-axis robotic palletizer for bags, cartons, pails and crates, available in 100 kg and 180 kg payload models for efficient automated palletizing.
View productPRODUCT FAMILY
Robotic Palletizing Systems
Integrated robot cells for palletizing bags, cartons and packaged goods using application-specific grippers and stacking programs.

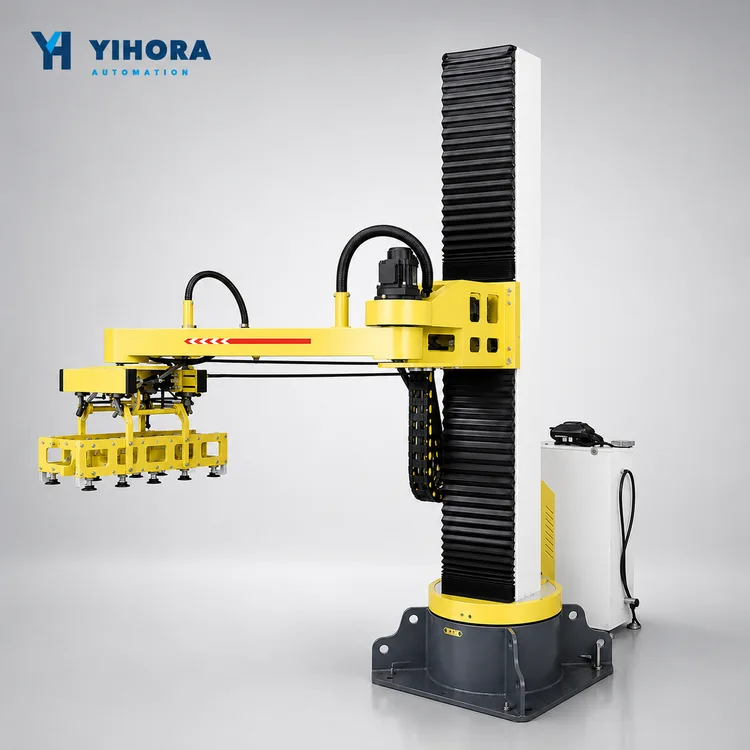

COLUMN-TYPE PALLETIZING ROBOT
Column-Type Palletizing Robot
Column-type palletizing robot for automatic bag stacking, featuring vertical lifting, rotary arm movement and a customizable gripper for efficient palletizing.
View productPALLETIZING CELL DESIGN
Select the robot, gripper and line interfaces as one system
- Payload and cycle requirements are calculated from the package weight, dimensions, pick position and target pallet pattern
- Bag, carton, pail and crate handling normally require different gripper concepts and product-contact checks
- Infeed conveyors, product orientation, pallet supply and completed-pallet discharge determine the cell sequence
- Available reach, stack height, floor space and obstruction clearance must be verified against the proposed robot layout
- Fencing, access doors, interlocks and controls are defined around the final site risk assessment and local requirements
PALLETIZING DATA CHECKLIST
Information needed to prepare a robotic palletizing proposal
- Package type, dimensions, weight, surface, rigidity and any handling restrictions
- Current and future line speed, infeed orientation and conveyor height
- Pallet dimensions, layer patterns, products per layer and maximum stack height
- Number of infeed lines, pallet positions and required empty/full pallet handling
- Measured floor plan, ceiling height, columns, access routes, utilities and safety boundary
ROBOTIC PALLETIZING
System FAQ
How is the robot payload selected for a palletizing application?
Selection must include the product, gripper, cables and any additional tooling, while also checking reach and cycle time at the required pick and place positions. Package weight alone is not enough to select the robot.
Can one palletizing cell handle different products?
Multiple products and pallet patterns can be evaluated when their dimensions, weights, infeed presentation and gripper compatibility are known. Changeover steps and any tooling or program limits should be defined in the proposal.
