JUMBO BAG FILLING & WEIGHING
500–1500 kg Jumbo Bag Filling Machine for Powders and Granules
Designed for accurate weighing and filling of powders, granules and irregular bulk materials into FIBC bulk bags.
- Filling range
- 500–1500 kg
- Packing speed
- 25–30 bags/h
- Weighing accuracy
- ±0.3%
- Suitable materials
- Powders, granules and irregular materials
- Feeding options
- Arc gate, screw, belt or sealed valve
PRODUCT INFORMATION
Product Overview

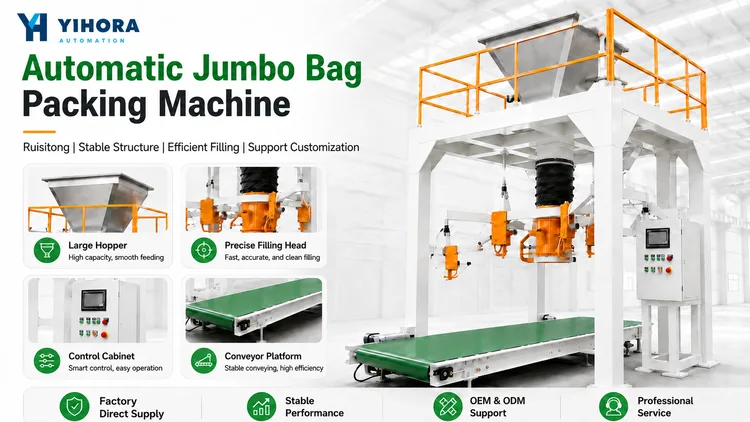

The YIHORA YH-BBF Series Bulk Bag Filling Machine is designed for quantitative filling of powders, granules and irregular bulk materials into 500–1500 kg FIBC bags. Different feeding configurations are available according to the material characteristics. Arc-gate feeding is suitable for free-flowing granules, screw feeding is used for powder materials, belt feeding is available for organic fertilizer and irregular products, and sealed valve feeding can be selected for powders with suitable flowability. The standard system provides automatic weighing, automatic lifting and hook release, with a reference capacity of 25–30 bags per hour and weighing accuracy of approximately ±0.3%. The machine structure, feeding system, material-contact parts, bag-supporting mechanism and discharge conveyor can be customized according to the material, bag size and production requirements.
PRODUCT INFORMATION
Suitable Materials and Applications
- Fertilizer and feed
- Cement, mortar and mineral powder
- Plastic resin and granules
- Sand and other bulk materials
PRODUCT INFORMATION
Key Features
- 500–1,500 kg configurable filling range
- Automatic weighing with four load cells
- Bag clamping, lifting and automatic unhooking
- 304 stainless steel material-contact parts
PRODUCT INFORMATION
Optional Configurations
- Granule Feeding Configuration | Arc-gate fast and slow feeding for free-flowing granular materials
- Screw Feeding Configuration | Variable-speed screw feeding for powder materials
- Belt Feeding Configuration | Forced belt feeding for organic fertilizer and irregular materials
- Valve Feeding Configuration | Sealed butterfly-valve feeding for powders with suitable flow characteristics
CONFIGURE THE APPLICATION
Need help matching the machine to your material and output?
PRODUCT INFORMATION
Product Details and Images
PRODUCT INFORMATION
FAQ
What materials can this jumbo bag filling machine handle?
The machine can be configured for powders, granules, organic fertilizer and irregular bulk materials. The feeding system is selected according to the material characteristics.
What is the standard filling range?
The standard filling range is 500–1500 kg per jumbo bag.
What is the reference filling capacity?
The reference capacity is approximately 25–30 bags per hour. Actual output depends on the material, target weight and operating conditions.
What is the weighing accuracy?
The reference weighing accuracy is approximately ±0.3%, subject to the material characteristics and working conditions.
Which feeding systems are available?
Arc-gate feeding, screw feeding, belt feeding and sealed-valve feeding configurations are available.
How do I choose the correct feeding system?
Arc-gate feeding is generally used for free-flowing granules, screw feeding for powders, belt feeding for organic fertilizer or irregular materials, and sealed-valve feeding for suitable powder products.
What type of bags can be used?
The machine is designed for jumbo bags, bulk bags and FIBC bags. Please provide the bag dimensions and lifting-loop arrangement before quotation.
Does the machine automatically weigh the material?
Yes. The system performs quantitative weighing using load cells and a computerized weighing controller.
Does the machine support automatic bag lifting and hook release?
Yes. The standard system can automatically lift the bag during filling and release the bag hooks after the filling process.
Can a filled-bag conveyor be added?
Yes. A bulk bag discharge conveyor can be supplied to transfer the filled bag away from the filling position.
Can the machine be customized?
Yes. The feeding method, filling range, machine height, material-contact parts and conveyor configuration can be customized according to the project.
What information is required for a quotation?
Please provide the material name, target weight per bag, required capacity, jumbo bag dimensions and destination country or port.
