TURNTABLE PALLET STRETCH WRAPPER
Turntable Pallet Stretch Wrapper
Designed for stable and consistent stretch-film wrapping of palletized goods before storage or transportation.
- Turntable diameter
- 1,650 / 1,800 / 2,000 mm
- Standard wrapping height
- 2,200 mm
- Standard load capacity
- 2,000 kg
- Turntable speed
- 0–12 rpm
- Film handling
- Manual or automatic film cutting available
PRODUCT INFORMATION
Product Overview
The YIHORA Turntable Pallet Stretch Wrapper provides a flexible solution for stabilizing palletized goods before warehousing and transportation. The product series is available with 1,650 mm, 1,800 mm and 2,000 mm turntables. The standard configuration supports loads up to 2,000 kg and a wrapping height of 2,200 mm. Increased wrapping height and reinforced load capacities of 3,000–4,000 kg can be supplied for suitable applications. Depending on the required automation level, the machine can be configured with manual film handling or automatic film-cutting functions. The final configuration is selected according to the pallet dimensions, load weight, packaging requirements and operating process.
PRODUCT INFORMATION

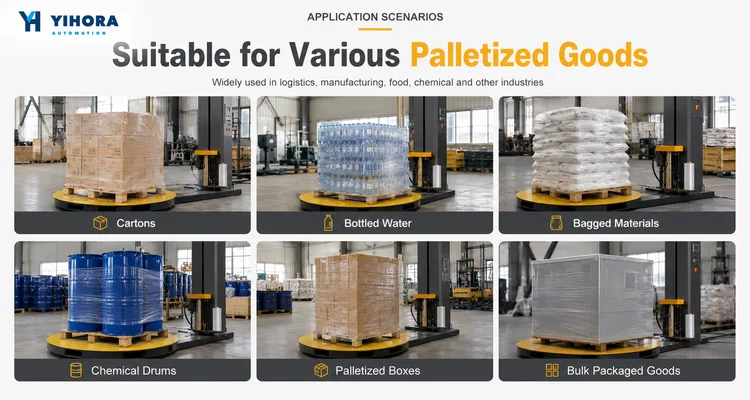

Suitable Materials and Applications
- Cartons and cases
- Bagged products
- Bottled goods
- Warehouse outbound pallets
PRODUCT INFORMATION
Technical Parameters
| Machine type | Turntable pallet stretch wrapper |
|---|---|
| Available turntable diameters | 1,650 / 1,800 / 2,000 mm |
| Standard wrapping height | 2,200 mm |
| Customized wrapping height | Available |
| Standard load capacity | 2,000 kg |
| Optional load capacity | 3,000–4,000 kg |
| Turntable speed | 0–12 rpm, adjustable |
| Film carriage | Pre-stretch type |
| Film cutting | Manual or automatic, depending on configuration |
| Rated power | 1.5 kW |
| Wrapping material | Stretch film |
| Customization | Available according to pallet size and packaging requirements |
PRODUCT INFORMATION
Key Features
- Multiple turntable diameters for different pallet sizes
- Pre-stretch film carriage for reduced film consumption
- Adjustable rotation speed for different load profiles
- Manual or automatic film-cutting configurations
- Custom wrapping height and heavy-load configurations
PRODUCT INFORMATION
Optional Configurations
- 1,650 mm, 1,800 mm or 2,000 mm turntable
- Customized turntable diameter
- Increased wrapping height
- Reinforced 3,000–4,000 kg load capacity
- Manual film cutting
- Automatic film cutting
- Loading ramp for pallet-truck access
- Top pressure plate for light or unstable loads
- Electrical configuration matched to the destination country
CONFIGURE THE APPLICATION
Need help matching the machine to your material and output?
PRODUCT INFORMATION
Product Details and Images
PRODUCT INFORMATION
FAQ
1.What turntable diameters are available?
Standard turntable diameters include 1,650 mm, 1,800 mm and 2,000 mm. Other sizes can be evaluated according to the pallet dimensions.
2.What is the standard load capacity?
The standard machine supports pallet loads up to 2,000 kg. Reinforced configurations for approximately 3,000–4,000 kg are available according to the application.
3.What is the standard wrapping height?
The standard wrapping height is 2,200 mm. The machine column can be customized for taller palletized loads.
4.Does the machine cut the stretch film automatically?
Manual film finishing and automatic film-cutting configurations are available. The suitable option depends on the required automation level and operating process.
5.Is this a fully automatic pallet wrapper?
The machine automatically rotates the turntable and moves the film carriage during wrapping. Film attachment, cutting and finishing functions depend on the selected configuration.
6.What type of film carriage does the machine use?
The machine can be equipped with a pre-stretch film carriage to maintain controlled wrapping tension and reduce stretch-film consumption.
7.What products can this machine wrap?
It is suitable for palletized cartons, bags, drums, containers, building materials, machinery parts and other stable pallet loads.
8.How do I choose the correct turntable size?
Please provide the pallet length, width, loaded height and maximum weight. We will recommend a suitable turntable diameter and machine configuration.
9.Can the voltage be customized for my country?
Yes. The voltage, frequency and electrical configuration can be matched to the requirements of the destination country.
10.What information is required for a quotation?
Please provide the pallet dimensions, loaded height, maximum weight, product type, required capacity, loading method, local power supply and destination country or port.
