MOBILE STRETCH WRAPPING ROBOT
Mobile Pallet Stretch Wrapper
Designed to wrap stationary pallet loads without a turntable, making it suitable for large, heavy or irregular products.
- Wrapping height
- 1,800–3,000 mm
- Packaging capacity
- 20–30 pallets/h
- Battery
- 24 V, 105 Ah
- Operating time
- 6–10 hours
- Film carriage
- Constant-tension pre-stretch
PRODUCT INFORMATION
Product Overview
The YIHORA Mobile Pallet Stretch Wrapper is a self-propelled wrapping machine designed to travel around stationary palletized loads. Unlike conventional turntable wrappers, the pallet remains on the floor while the machine moves around it and applies stretch film. This makes the machine suitable for large, heavy, unstable or irregular loads that are difficult to rotate. Wrapping heights from 1,800 mm to 3,000 mm are available. The machine can also be configured with wireless remote control and optional automatic film cutting according to the required operating process. Please provide the pallet dimensions, loaded height, product weight and required packaging capacity. We will recommend a suitable machine configuration.
PRODUCT INFORMATION
Working Principle
The palletized load remains stationary on the floor while the mobile wrapping machine travels around it. Before operation, the operator positions the machine beside the pallet and secures the leading end of the stretch film to the load. After the wrapping cycle starts, the drive system guides the machine around the pallet while the film carriage moves vertically along the column. The pre-stretch film carriage applies film under controlled tension, allowing the machine to wrap the load from bottom to top. The wrapping process can be operated from the machine controls or an optional wireless remote control. At the end of the cycle, the film is finished manually or cut automatically, depending on the selected configuration.
PRODUCT INFORMATION
Technical Parameters
| Machine type | Mobile self-propelled pallet wrapper |
|---|---|
| Available wrapping heights | 1,800–3,000 mm |
| Load dimensions | No fixed turntable-size limitation |
| Recommended load weight | 100 kg or above |
| Film carriage | Constant-tension pre-stretch type |
| Packaging capacity | 20–30 pallets/h |
| Battery capacity | 24 V, 105 Ah |
| Operating time | Approximately 6–8 hours |
| Rated power | 1.0 kW |
| Control method | Machine controls or optional wireless remote control |
| Film cutting | Manual or automatic, depending on configuration |
| Machine dimensions | Approximately 1,600 × 1,250 × 2,100 mm for the 1,800 mm model |
| Machine weight | Approximately 320 kg ±20 kg for the 1,800 mm model |
| Wrapping material | Stretch film |
| Customization | Available according to load height and operating requirements |
PRODUCT INFORMATION
Key Features
- No turntable required for pallet wrapping
- Suitable for large, heavy and irregular pallet loads
- Multiple wrapping heights from 1,800 to 3,000 mm
- Constant-tension pre-stretch film carriage

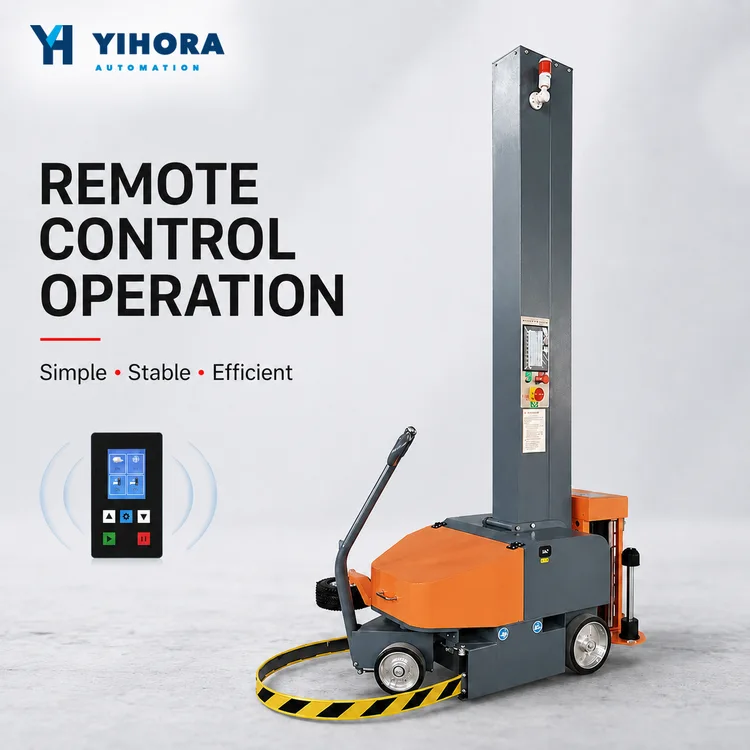

- Wireless remote-control configuration available
- Optional automatic film-cutting function
- Battery-powered operation for flexible movement
CONFIGURE THE APPLICATION
Need help matching the machine to your material and output?
PRODUCT INFORMATION
Product Details and Images

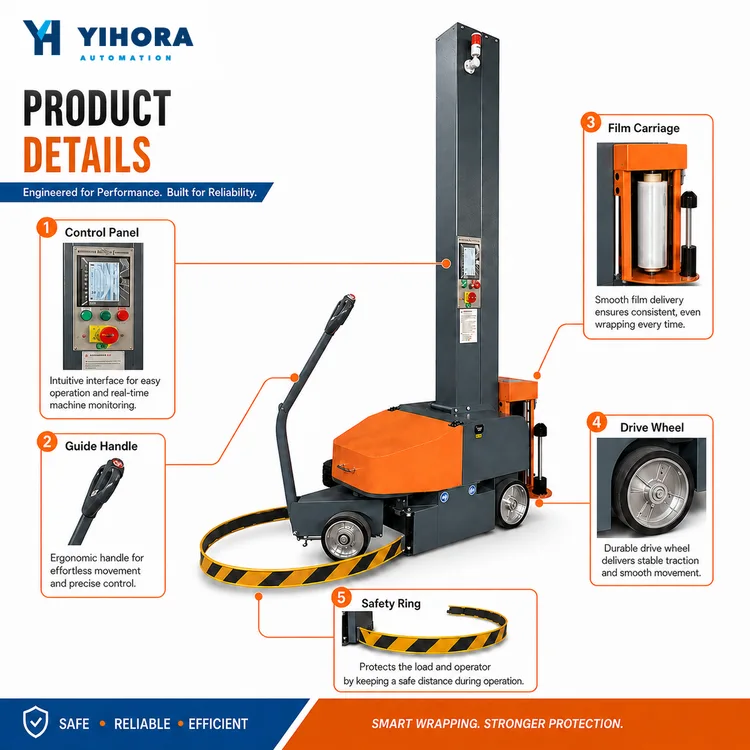

Explore the self-propelled drive system, film carriage, battery, control panel and optional remote-control configuration. Machine dimensions and appearance may vary according to the selected wrapping height and optional functions.
PRODUCT INFORMATION
FAQ
What wrapping heights are available?
The mobile pallet wrapper is available with wrapping heights from 1,800 mm to 3,000 mm. Customized heights can also be evaluated according to the maximum loaded pallet height.
Does the pallet need to rotate during wrapping?
No. The pallet remains stationary while the self-propelled machine travels around the load and applies stretch film.
What types of loads are suitable for this machine?
The machine is suitable for large, heavy, irregular or unstable pallet loads that are difficult to place on or rotate with a conventional turntable wrapper.
Is there a maximum pallet size?
There is no fixed turntable-diameter limitation. However, sufficient floor space must be available for the machine to travel safely around the pallet.
Is there a maximum load weight?
Because the pallet remains on the floor, the machine does not directly support the load weight. The floor, pallet and handling equipment must still be suitable for the actual product weight.
How long can the machine operate on one charge?
The 24 V, 105 Ah battery normally supports approximately 6–8 hours of operation. Actual operating time depends on the load size, wrapping program and working conditions.
What is the packaging capacity?
The reference packaging capacity is approximately 20–30 pallets per hour. Actual output depends on pallet dimensions, wrapping height, film layers and operating conditions.
Can the machine be operated by remote control?
Yes. A wireless remote-control configuration is available for more convenient operation.
Does the machine cut the film automatically?
Manual film finishing and optional automatic film-cutting configurations are available. Please specify the required automation level when requesting a quotation.
What type of film carriage is used?
The machine uses a constant-tension pre-stretch film carriage designed to provide stable wrapping tension and reduce stretch-film consumption.
Can the machine wrap loads higher than 1,800 mm?
Yes. Models with wrapping heights up to 3,000 mm are available, and other heights can be evaluated according to the application.
What information is required for a quotation?
Please provide the load dimensions, loaded height, approximate weight, required capacity, available floor clearance, local power supply and destination country or port.
