Storage hopper
Stores granular material before weighing and includes an observation window
THREE-STAGE FEEDING GRANULE BAGGING MACHINE
5–25 kg High-Precision Three-Stage Feeding Granule Open-Mouth Bagging Machine
Designed for accurate and efficient filling of 5–25 kg free-flowing granular materials into open-mouth bags.
- Weighing range
- 5–25 kg
- Packing speed
- 6–8 bags/min
- Weighing accuracy
- ±0.2%
- Suitable material
- Granules
- Feeding system
- Three-stage feeding
PRODUCT INFORMATION
Product Overview
The YIHORA 5–25 kg High-Precision Three-Stage Feeding Granule Open-Mouth Bagging Machine is designed for accurate weighing and packing of free-flowing granular materials. The weighing system combines an arc-gate valve with a vibrating pan feeder to perform coarse, medium and fine feeding. This three-stage feeding process helps the machine approach the target weight quickly while maintaining stable final weighing accuracy. The standard weighing range is 5–25 kg per bag, with a reference packing speed of 6–8 bags per minute and a weighing accuracy of approximately ±0.2%. The complete packing system can include the bagging scale, storage hopper, belt conveyor and vertical double-thread bag sewing machine. Machine layout, hopper size, conveyor dimensions and electrical configuration can be customized according to the material, bag size and production requirements.
PRODUCT INFORMATION
Suitable Materials and Applications
- Free-flowing plastic granules
- Feed pellets
- Rice and grain products
- Seeds
- Fertilizer granules
- Chemical granules
- Food-grade granular products
- Other uniform or moderately free-flowing granules
PRODUCT INFORMATION
Working Principle
Granular material is first stored in the upper hopper and then enters the weighing system. At the beginning of the weighing cycle, the arc-gate valve supplies material rapidly for coarse feeding. As the measured weight approaches the target value, the feeding rate is reduced. The vibrating pan feeder then performs medium and fine feeding to control the final amount more accurately. When the preset weight is reached, the feeding system stops and the weighed material is discharged into an open-mouth bag held below the weighing unit. The filled bag is placed on the belt conveyor and transferred to the GK35-6A sewing machine. The bag mouth is sewn closed while the conveyor supports and moves the bag through the closing process.
PRODUCT INFORMATION
Technical Parameters
| Machine type | Granule open-mouth bagging machine |
|---|---|
| Model | YH-OMB-G25P |
| Original scale model | SDKL-50G |
| Weighing range | 5–25 kg |
| Packing speed | 6–8 bags/min |
| Weighing accuracy | ±0.2% |
| Suitable material | Free-flowing granules |
| Feeding method | Arc-gate valve and vibrating pan feeder |
| Feeding stages | Coarse, medium and fine feeding |
| Bag type | Open-mouth bags |
| Bag closing method | Sewing |
| Sewing machine model | GK35-6A |
| Conveyor model | SDPD-3000 |
| Conveyor length | 2.5–3 m |
| Conveyor width | 450 mm |
| Conveyor height | 200–500 mm |
| Conveyor speed | 0.4 m/s |
| Conveyor motor power | 0.55 kW |
| Storage hopper model | SDLC-800 |
| Storage hopper size | 800 × 800 × 800 mm |
| Customization | Available according to material and production requirements |
PRODUCT INFORMATION

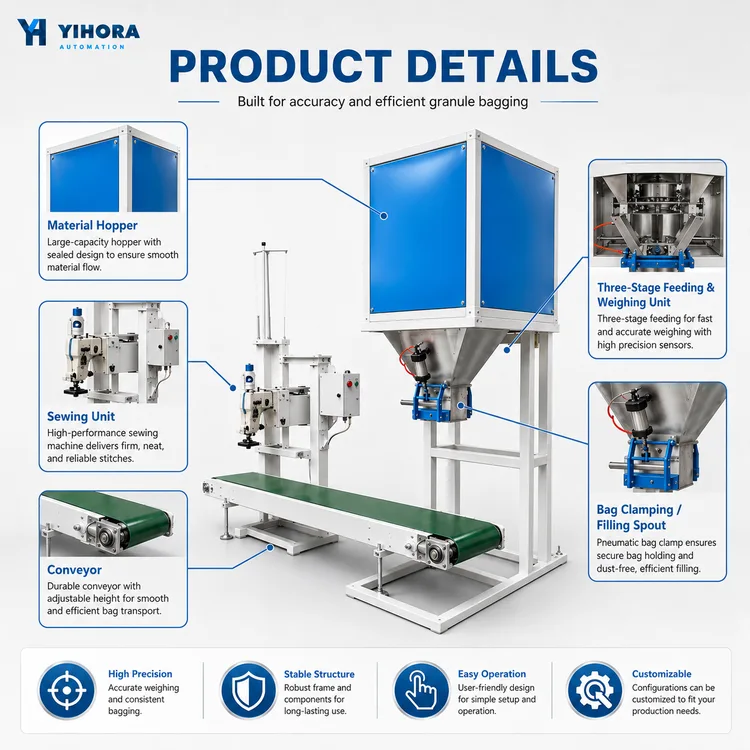

Machine Components
Arc-gate feeding valve
Provides rapid coarse feeding during the initial weighing stage
Vibrating pan feeder
Provides controlled medium and fine feeding near the target weight
Weighing unit
Measures the material and controls the feeding stages
Bag-clamping unit
Holds the open-mouth bag below the discharge outlet
Control system
Coordinates weighing, feeding, discharging and related operations
Belt conveyor
Supports and transfers the filled bag to the sewing position
Bag sewing machine
Closes the filled open-mouth bag with double-thread stitching
Height-adjustment structure
Allows the conveyor and sewing position to match different bag sizes
PRODUCT INFORMATION
Key Features
- Arc-gate valve and vibrating pan three-stage feeding
- Coarse, medium and fine dosing for stable final weighing
- Suitable for 5–25 kg granular products
- Reference packing speed of 6–8 bags per minute
- Approximately ±0.2% weighing accuracy
- Complete system with conveyor and bag sewing machine
- Customizable hopper, conveyor and electrical configuration
PRODUCT INFORMATION
Optional Configurations
- Customized weighing range
- Customized storage hopper size
- Different conveyor lengths
- Adjustable conveyor height
- Alternative bag-closing equipment
- Dust-collection connection
- Material-contact parts in stainless steel
- Electrical configuration matched to the destination country
- Customized machine layout
- Upstream feeding equipment
CONFIGURE THE APPLICATION
Need help matching the machine to your material and output?
PRODUCT INFORMATION
Product Details and Images
PRODUCT INFORMATION
FAQ
What materials is this machine suitable for?
It is designed for free-flowing granular materials such as plastic granules, feed pellets, grains, seeds, fertilizer granules and similar products.
What is the standard weighing range?
The standard weighing range is 5–25 kg per bag.
What is the reference packing speed?
The reference packing speed is approximately 6–8 bags per minute. Actual output depends on the material, target weight, bag handling and operating conditions.
What is the weighing accuracy?
The reference weighing accuracy is approximately ±0.2%, subject to the material characteristics and operating conditions.
What does three-stage feeding mean?
The system uses coarse, medium and fine feeding stages to approach the target weight efficiently while controlling the final filling amount.
What feeding structure does the machine use?
The machine combines an arc-gate valve with a vibrating pan feeder for three-stage material feeding.
What type of bags can be used?
The machine is designed for prefabricated open-mouth bags. The bag dimensions and material should be confirmed before quotation.
How is the filled bag closed?
The standard system uses a GK35-6A vertical double-thread sewing machine to close the bag mouth.
What equipment is included in the complete system?
A typical system includes the bagging scale, storage hopper, belt conveyor and bag sewing machine. Final supply scope depends on the selected configuration.
Can the hopper and conveyor be customized?
Yes. Hopper dimensions, conveyor length, conveyor height and machine layout can be customized according to the project.
Can stainless-steel contact parts be supplied?
Stainless-steel material-contact parts can be evaluated according to the product and hygiene or corrosion-resistance requirements.
What information is required for a quotation?
Please provide the material name, particle size, bulk density, target bag weight, required capacity, bag dimensions, local power supply and destination country or port.
